| Features |
| ¡ö |
Ultra brightness display board |
| ¡ö |
Auto adjust brightness |
| ¡ö |
3000 pages data storage |
| ¡ö |
Simple operate control box |
| ¡ö |
SD card storage |
| ¡ö |
One key change route direction |
| ¡ö |
Aluminum frame |
| |
|
| Specifications |
| ¡ö |

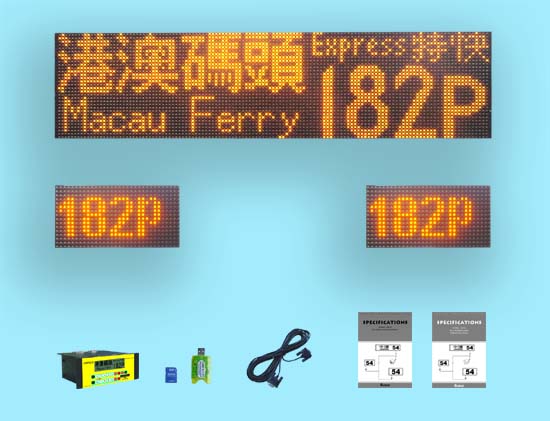

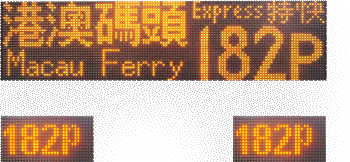

It is LED bus destination display system with front / side / rear board |
| ¡ö |
LED display board are front:32x128 pixel / side and rear:16x32 pixel |
| ¡ö |
Front board is 10mm pitch / side and rear is 15mm pitch amber color LED |
| ¡ö |
Moving message display area: the front board is 128 x 32cm, the side board |
| |
and rear board is 47 x 23cm |
| ¡ö |
Frame outside dimension: the front board is 130.5 x 32 x 6.1 cm,the side board |
| |
and rear board frame outside is 48 x 24 x 8.3cm |
| ¡ö |
Outdoor luminous, use on the bus |
| ¡ö |
Aluminium frame case with black color spray |
| ¡ö |
Net weight: the front board is 16kg, the side and back board is 5kg |
| ¡ö |
Input voltage is DC 24V, the front board max power consumption 200 watt, |
| |
the side board and rear board max power consumption 90 watt |
| ¡ö |
RS485 cable, control box, write card, program software, SD card, user manual |
| |
included |
