| Selectable output type |
| Model: AM0179 (70 Watt.) |
|
¡ö |
Design for a wide range of domestic equipment,Notebook computer,Traveler equipment. |
¡ö |
Multi changeable plug DC-cord or customer design DC-cord |
¡ö |
Universal AC input 100V to 240V,50Hz/60Hz. |
¡ö |

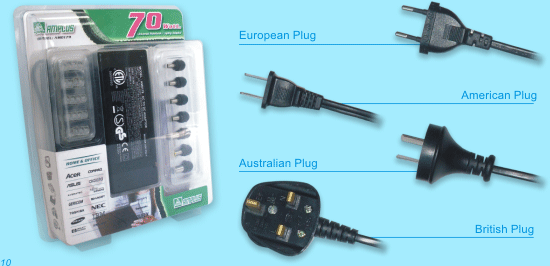

Universal AC input plug availble(BSI,USA,Europe,Aust,CHINA) |
¡ö |
20 selectable outputs:5V-24V MAX.4.0A. |
¡ö |
The multi selectable version can be set the output by a changable slot. |
¡ö |
Over load,over current,over heat protection. |
¡ö |
International approval CE EN60950,UL1950,CSA22.2 No.950. |
¡ö |
EMC approval EN55011,FCC part 15. |
¡ö |
Extra low consumption. |
¡ö |
Weight:365g approximately. |
¡ö |

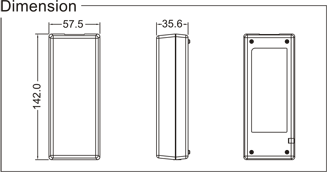

Small size:58x36x142mm. |
|
 |
|
| |
|
| |
|
| |
Below is the voltage current table and avoid higher loads! |
Rate output voltage |
5V |
6V |
7V |
8V |
9V |
10V |
11V |
12V |
13V |
14V |
Max. output current |
7.5A |
7A |
7A |
6.5A |
6.0A |
5.5A |
5.3A |
5.0A |
4.8A |
4.5A |
| Rate output voltage |
15V |
16V |
17V |
18V |
19V |
20V |
21V |
22V |
23V |
24V |
Max. output current |
4.2A |
3.9A |
3.7A |
3.5A |
3.3A |
3.2A |
3.1A |
2.99A |
2.86A |
2.75A |
|
| |
|
| |
|
