| Selectable output type |
| Model: AM9932HX (28 Watt.) |
|
| ¡ö |
Design for a wide range of domestic equipment,portable TV,Mini-Notebook. |
| ¡ö |
Multi changeable plug DC-cord or customer design DC-cord |
| ¡ö |
Universal AC input 100V to 240V,50Hz/60Hz. |
| ¡ö |

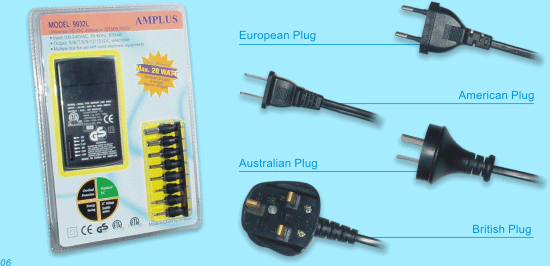

Universal AC input plug availble(BSI,USA,Europe,Aust) |
| ¡ö |
6 selectable outputs:12v-24v MAX.2.3A. |
| ¡ö |
Over load,over current,over heat protection. |
| ¡ö |
International approval CE EN60950,UL1950,CSA22.2 No.950. |
| ¡ö |
EMC approval EN55011,FCC part 15. |
| ¡ö |
Extra low consumption. |
| ¡ö |
Weight:197g approximately. |
| ¡ö |
Small size:95.5x54.5x34.5mm. |
|
 |
|
| |
|
| |
|
| |
Below is the voltage current table and avoid higher loads! |
Rate output voltage |
12V |
15V |
18V |
20V |
22V |
24V |
Max. output current at 220v |
2.3A |
1.9A |
1.6A |
1.4A |
1.3A |
1.2A |
Max. output current at 110v |
2.0A |
1.7A |
1.4A |
1.2A |
1.0A |
1.0A |
|
| |
|
| |
|
